Driving capacity: Yahboom's motor drive module uses two AT8236 as the control chip. The rated driving current of a single motor can reach 3.6A, and the maximum peak value can reach 6A. Compared with L298N Motor Driver Controller Board, Yahboom 2-Channel motor drive module has superior driving and anti-interference ability

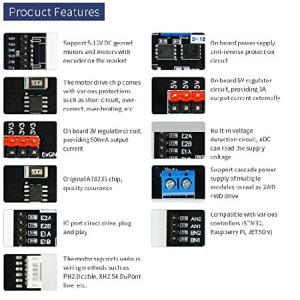

Circuit protection: The dual-motor drive control board has a 3.3V/5V voltage regulator circuit and anti-reverse protection circuit on board, with over-current, short-circuit, under-voltage lockout and over-temperature protection, and has the characteristics of extremely low heat generation and circuit safety. Greatly increased reliability.

Wide range of applications: the motor speed controller can be controlled by 5V/3A or 3.3V/0.5A microcontrollers such as Raspberry Pi, Pico, arduino, jetson nano, STM32, etc. The controllable motors include TT motors, encoder test TT motors, 520 motors, and 310 motors and other motors. The motor can be connected with DuPont line or PH2.0 interface.

Low investment and efficient work: The motor drive module supports dual-channel H-bridge drive mode and cascaded power supply of multiple modules to realize simultaneous control of two-wheel drive/four-drive/multi-drive smart robot car, which can create higher work efficiency. Higher cost performance than TB6612FNG dual DC stepper motor driver module.

Code schematic diagram: Yahboom provides technical support and code schematic diagram, and the information includes driver cases of various development boards

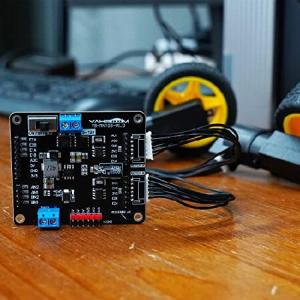

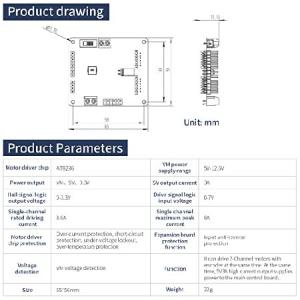

説明: This dual-channel motor drive module is designed based on AT8236 chip, which can drive 2-channel motors with Hall encoder at the same time. Supports 5-12V voltage power input and has input anti-reverse connection protection. At the same time, it has its own voltage stabilizing circuit, which supports 5V/3A high current or 3.3V/500mA output for power supply of the main board. The rated driving current of single-circuit motor is 3.6A, and the maximum peak current can reach 6A. It possess over-current protection, short circuit protection, under-voltage locking, over-temperature protection circuit, etc. On-board VM voltage detection circuit can read the power supply voltage in real time. At the same time, it supports cascade power supply between multiple modules to realize 2WD/4WD and other smart car.

当サイトをご覧頂き誠にありがとうございます。弊社商品は全て正規店からの新品・並行輸入品です。税関手続・関税払いは全て弊社で対応の上、全国送料無料でお届けします。弊社海外倉庫より国内に発送しますので、お届けまで2-15営業日程度お時間を頂いております。税関検査により無作為に開封された場合、ごく稀に外箱に損傷が生ずる場合がありますが、商品自体の品質には問題ございませんのでご安心ください。（商品が電波法上の技術基準に適合する必要がある無線機器の場合：商品は並行輸入品のため、電波法上の技術基準に適合致しません。日本国内で使用すると電波法に違反する恐れがありますので、ご購入・ご使用には十分ご注意ください）

カテゴリー:

メーカー: Yahboom

ブランド: Yahboom

高さ: 19.0 センチ

幅: 14.8 センチ

奥行: 1.9 センチ

重量: 0.1 Kg
